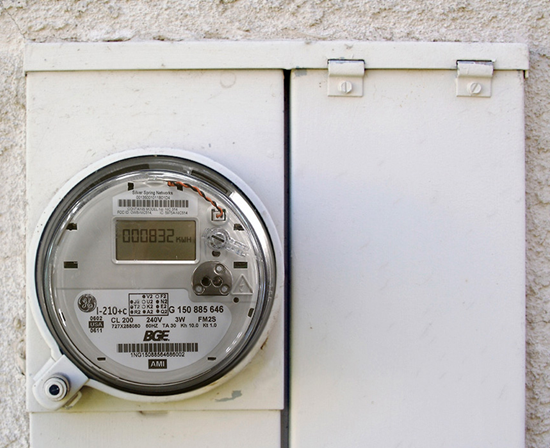

How to Read Your Electric Meter

Your meter will continually flash certain messages. Here's what those messages mean.



Meter Register ID and Register Value

  1. The number at the top left shows the current Register ID, also known as the display identifier code. It shows you what type of data the screen is currently showing.

  2. The number at the right shows the current Register Value, also known as the Meter Reading. It displays the actual measurement corresponding to whatever Register ID code is shown at the top left.

The number at the top left shows the current Register ID, also known as the display identifier code. It shows you what type of data the screen is currently showing.

The number at the right shows the current Register Value, also known as the Meter Reading. It displays the actual measurement corresponding to whatever Register ID code is shown at the top left.

Total Kilowatt Hours used over time

This number shows how much total power is being used over a certain amount of time, similiar to an odometer on a car.

  • The number at the top left shows 001
  • The number on the right shows a number followed by kWh

Click here for a real life example

Power being received by BWP

This number shows how much power is being sent to BWP, which will be 0 unless you have solar panels installed.

  • The number at the top left shows 002
  • The number on the right shows a number followed by kWh

Click here for a real life example

The number of Kilowatts used per 15-minute interval

This number shows how much total power is being used over a 15 minute interval.

  • The number at the top left shows 003
  • The number on the right shows a number followed by kWh

Click here for a real life example

Electric meter status

The status of your electric meter. If the text is Closed, power is on. If the text is Open, power is off.

  • The number at the top left shows 004
  • The text on the right will say Open or Closed

Click here for a real life example

feature image

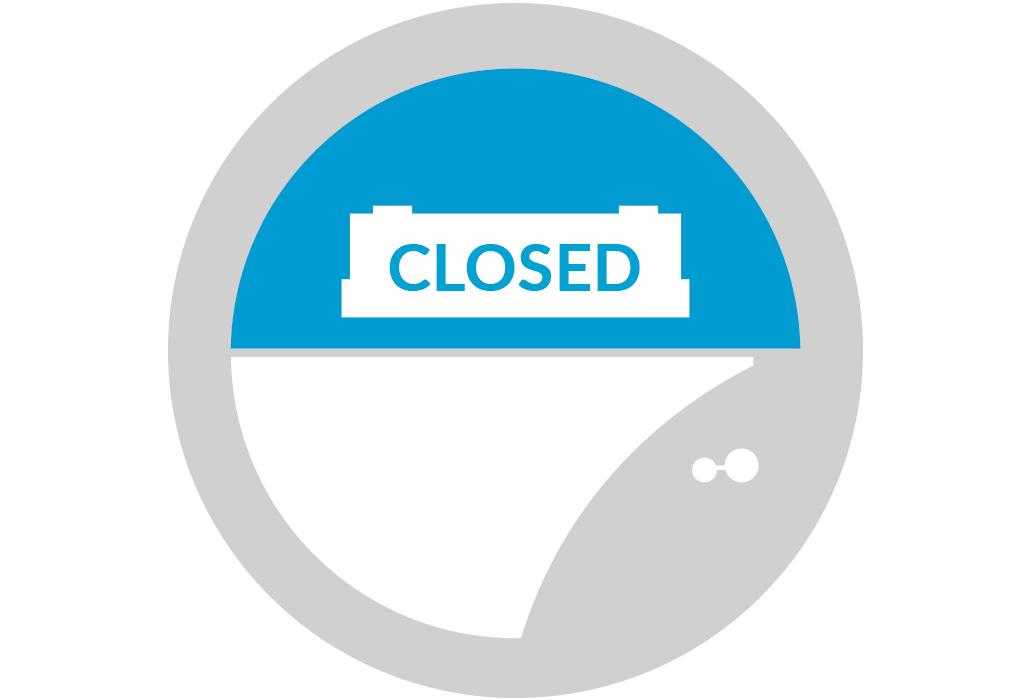

The first message should say 'Closed.' This means that power is on and flowing into the property.

feature image

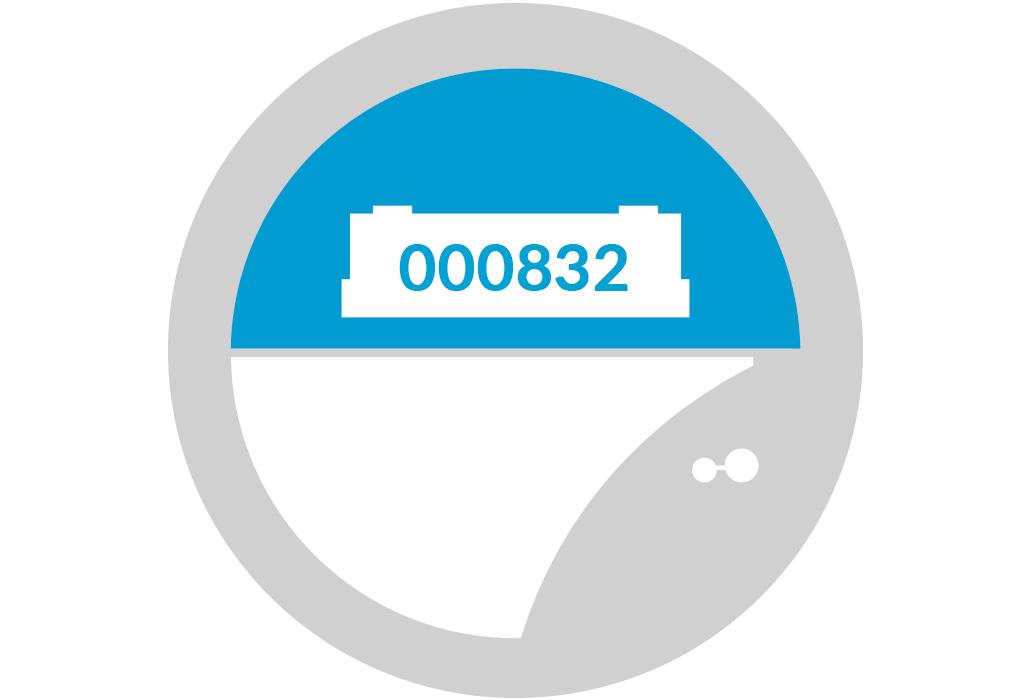

The last number is your kW-hour read. Subtract it from your last read to get your current consumption.
